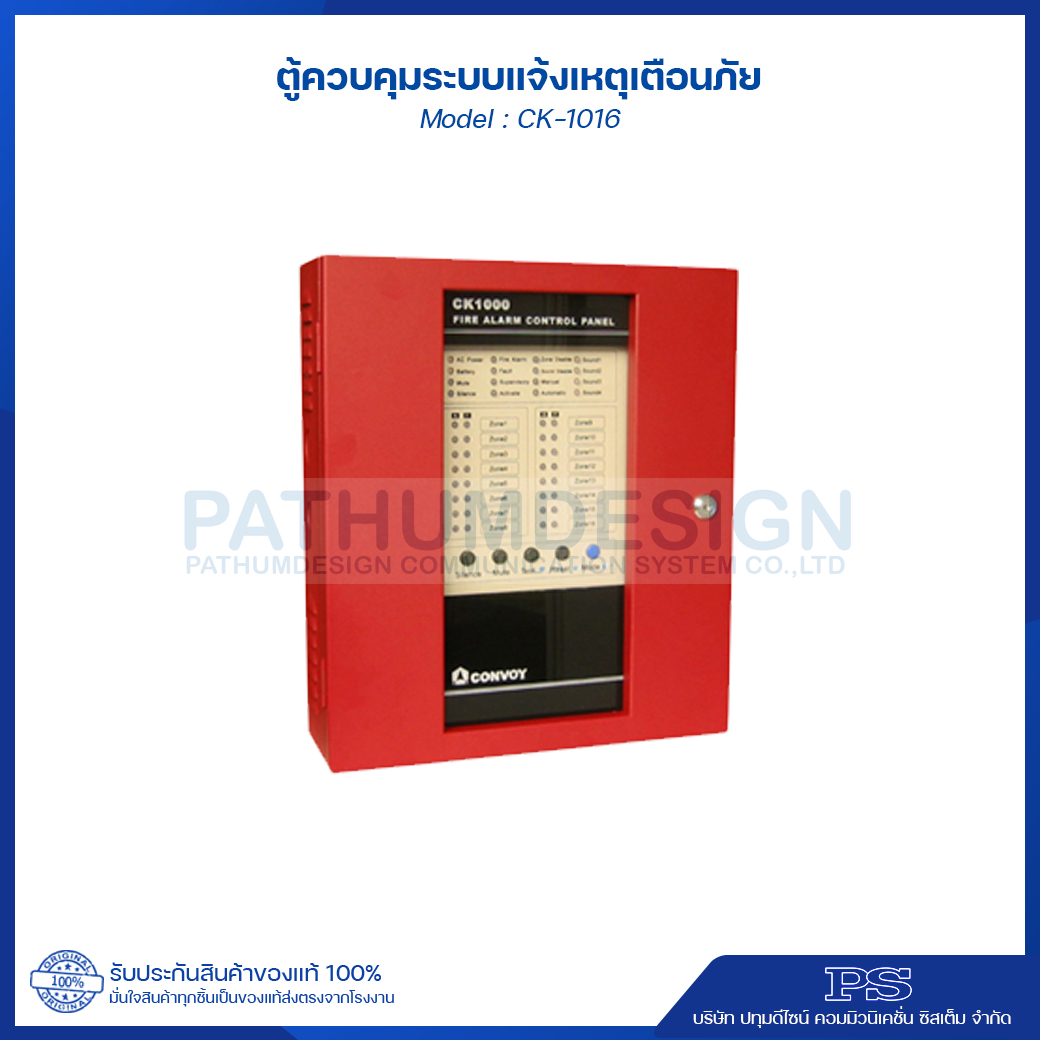

ตู้ควบคุมระบบแจ้งเหตุเตือนภัย Fire Alarm CK-1016 16 Zone

ตู้ควบคุมระบบแจ้งเหตุเตือนภัย Fire Alarm CK-1016 16 Zone
conventional fire alarm control panel 16 zone
Model: CK-1016
General
The CK1016  Conventional Fire Alarm Control Panel is a 24 volt, four, eight, sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly costeffective CK1000 Series can be used in a variety of low- to midsized applications.

Specifications
1.AC POWER:
90 to 270VAC, 50 Hz, 3.0 amps.
Wire size: minimum 14 AWG (2.0 mm2) with 600-volt insulation.
2.BATTERY:
Sealed lead-acid batteries only.
Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat
charge.
Maximum battery charger capacity: 18AH battery.

Features
1. Four to Sixteen Style B (Class B) Initiating Device Circuits (IDCs).
2.All zones accept two-wire smoke detectors and any normallyopen contact devices.
3.Zones 1 - 16 configured as general alarm zones.
4.All circuits are power-limited and supervised, meeting the latest ULC requirements using fuseless technology.
5.Two built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).NACs may be programmed: Silenceable,Non-Silenceable, Auto-Silence
1.25 amps of NAC power. 3.00 amps of total system power.
6.Alarm, Trouble and Supervisory, relay output. 24 volt operation.
7.Resettable four-wire smoke detector power @ 500 mA. Nonresettable power @ 500 mA.
8.Integral battery charger capable of charging up to 18 AH batteries (batteries over 4 AH require use of the external battery backbox, or ULC listed equivalent).
9.Disable/Enable control per IDC.
10.Reverse polarity protection.
