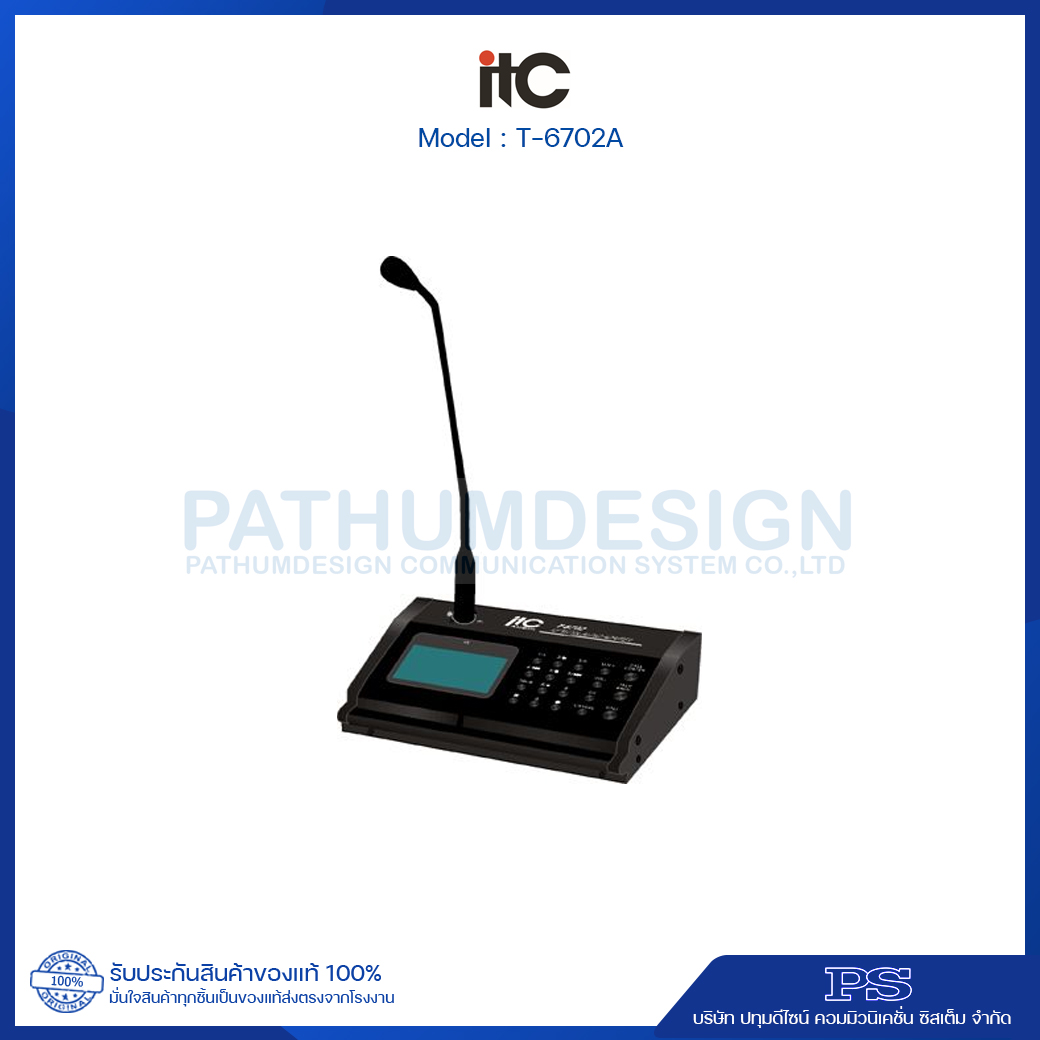

T-6702A Network Paging Zone, mic Station, LAN CAT5 cable system

Model

T-6702A

Network Input

Standard RJ45

Communication Protocol

TCP/IP, UDP, IGMP (multicast)

Audio Format

MP3

Sampling Rate

8K~48KHz

Transmission Speed

100Mbps

Audio Mode

16-bit CD sound quality

Screen Size

7 inch

Screen Resolution

800 x 480 pixel

Screen Type

65 k color DGUS screen

Keyboard Types

Virtual QWERTY keyboard

keyboard Entry Method

Touch

Rated Power and Impedance

of Build-in Speaker

4Ω, 2W

THD

≤1%

Frequency Response

80Hz~16KHz

S/N Ratio

>68dB

Rated Power and Impedance

of PHONE OUT

32Ω, 20mW

Level of LINE OUT

1000mV industrial standard press-line connecting terminals

Line Output Impedance

470Ω

Line Input Sensitivity

350mV industrial standard press-line connecting terminals

Input Sensitivity of MIC

10mV

Short-circuit input

Dry contact input

Short-circuit Output

Max 1A/30VD Dry contact output

Working Temp

5℃~40℃

Humidity

20%~80% Relative humidity, without condensation

Power Consumption

≤6W

Input Power Supply

~190-240V 50/60Hz (power adapter); DC24V/2A

Dimensions

200 x 158 x 163 mm

Weight

1.2Kg
