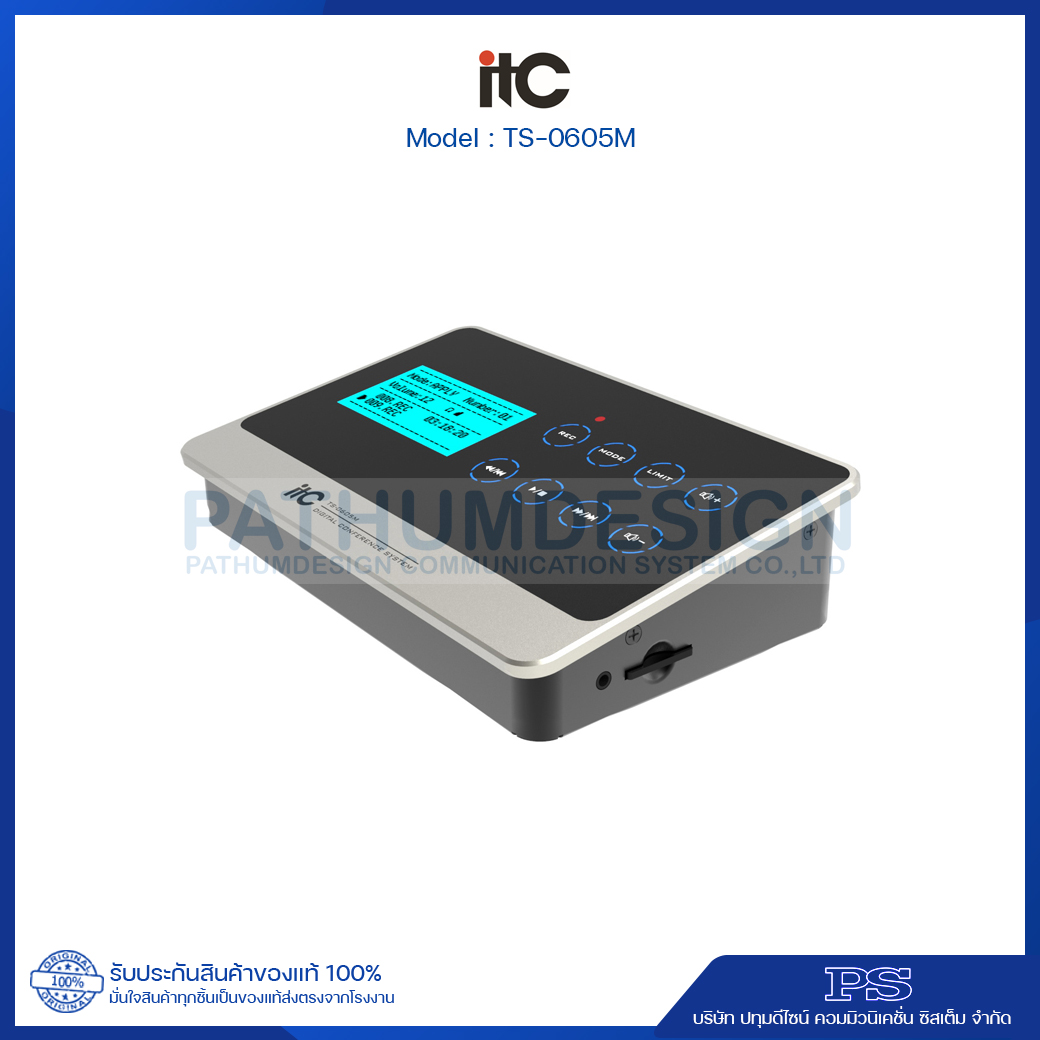

ITC PS TS-0605M Conference Host

Feature
1. Using touch buttons; provide shortcuts for recording, play-back, switcher for modes or limit quantity and volume control；
 2. 4 kinds of conference modes: Fist-in-first-out/Normal/ Free/ Apply;
 3. With the limit function for the quantity of active microphones: Optional limit quantity is 1/2/4/6, and the chairman unit is unlimited;
 4. 1 host can be connected up to 30 conference microphones;
 5. Connection method of conference microphones is “Hand-in-hand”, which is easy to be installed and maintained;
      Using audio processing modules like digital EQ and noise reduction system makes sound loud and clear; 1 audio input and 1 audio output;
 6.  With 1 channel acoustic output, which could be used to do sound reinforce by connecting to PA power amplifier;
 7.  With 1 channel recording output, which could work with recording device;
 8.  With the recording function and SD slot to do real-time recording of SD CARDS signed in can make convenience for real-time recording;
 9.  Could be connected to external microphone ;gain control is provided;
 10. With the function of auto configuration for ID address to make installation more convenient ;
 11. Using external power supply at 24V;
 12. The enclosure of the controller is in material of metal which make the circuit connected to the ground wire better to ensure antistatic ability of 6000V;
 13. Desktop-style and user-friendly operation;
 14. Using 3.5mm headset jack to monitor the information of the conference in real-time.

Specification

Microphone Capacity                   ≤30
Frequency Response                  30~20KHz
S/N Ratio                                  >75dB(A)
Dynamic Range                            >80dB
Crosstalk                                     >80dB T.H.D. <0.05%
Power Supply                               DC 24V
Audio Input                                LINE IN: 350mV (balanced)
Audio Output                              LINE OUT 1:1V ( balanced)
Output Load                                ＞1 KΩ
Static Power Consumption           10W
Output Power Consumption        70W
Connector                                   8-core air plug
Standards                                   IEC60914
Working Temperature                  -10℃ ~ +60℃
Working Humidity                       relative humidity 20%~80%, no condensing
Dimension (LxWxH)                    210 x 132 x 50mm
Weight                                      1.65kg
Color                                         Black
