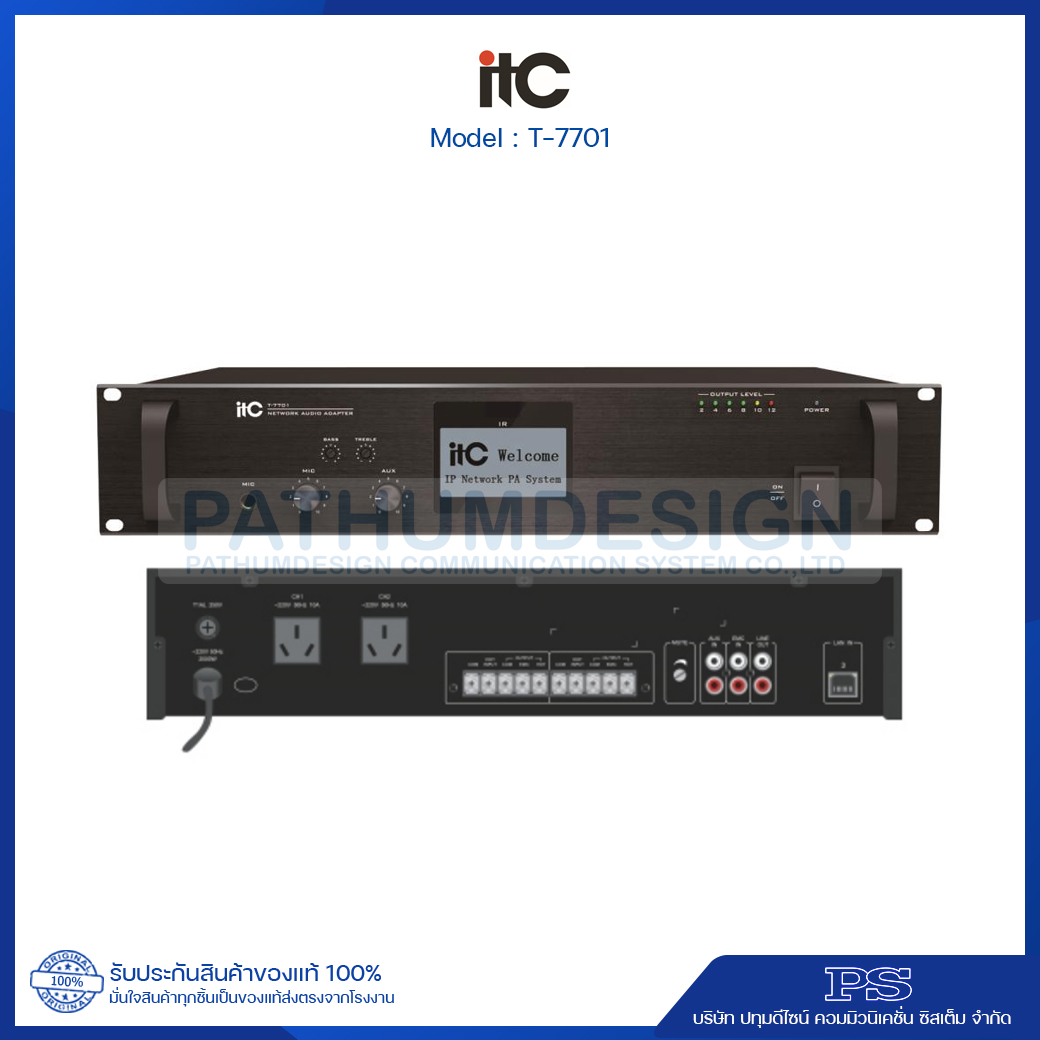

T-7701 IP Network Adaptor

Feature

*  With design of 19 rack mount IP/TCP network audio adapter, black alumina panel, Solid Handle, Professional mechanical assembly process, with excellent high-end appearance.

*  Industrial-grade LCD display in 3.4-inch , it can clearly show the majority of dot pattern and machine working status; equipped with infrared remote control, on-demand all contents in server program library, available to control the playback / pause, flexible and simple operation.

*  Embedded with PC technology, built-in DSP Audio processing technology design.

*  Built-in 1-channel network hardware audio decoding module, support TCP/IP, UDP, and IGMP (Multicast Protocol), enabling networked transmission of 16-bit CD-quality audio signals

*  One channel line(AUX) and one channel Mic (Mic) input interface. Support independent bass and treble adjustment and support offline local paging function without Internet.

*  One way of EMC input interface, enter the emergency alarm voice signal straightly as the highest priority.

*  2 way auxiliary audio signal output interface, extensible external power amplifier, the standard XLR interface, with convenient wiring connection .

*  Two way of three-wire volume control relay output interface, no need 24V power supply, it compatible with four-wire volume control alarm relay output at the same time, it needs DC 24V relay power supply.

*  Support 2-way power supply outlet, Built-in intelligent power management, it will automatically cut off output power when there is no BGM music or calling, and automatically turn on the output power supply when there is a signal.

*  Built-in 3 priority setting:

   EMC signal with the highest priority

   Network alarm signal has higher priority than MIC, AUX and network background music signal

   MIC has higher priority than AUX network background music signal

   AUX and network background music are at the same priority level.

*  Support silence intensity preset decrease function, support background accompaniment preset function; support status light display, including level indicator, protection indicator, standby light and so on. Authorized operation management functions, Unified configuration and management user and password by the server.

*  It is compatible with any network structure such as routers, switches, bridge gateways, modems, Internet, 2G, 3G, 4G, multicast, and unicast.

*  Digitalized products, easy expansion, not limited by geographical location, no need to increase the engine room management equipment, adopt a total network of free road construction design, easy to install.

*  It Support remote hardware upgrade of the terminal, no need to upgrade at the local site, to reduce maintenance burdens and make more simple operation.

*  With USB playback function. Can remotely play any song and play the previous one, the next one, pause, stop and other functions (or select panel keys for operation).

Specifications
